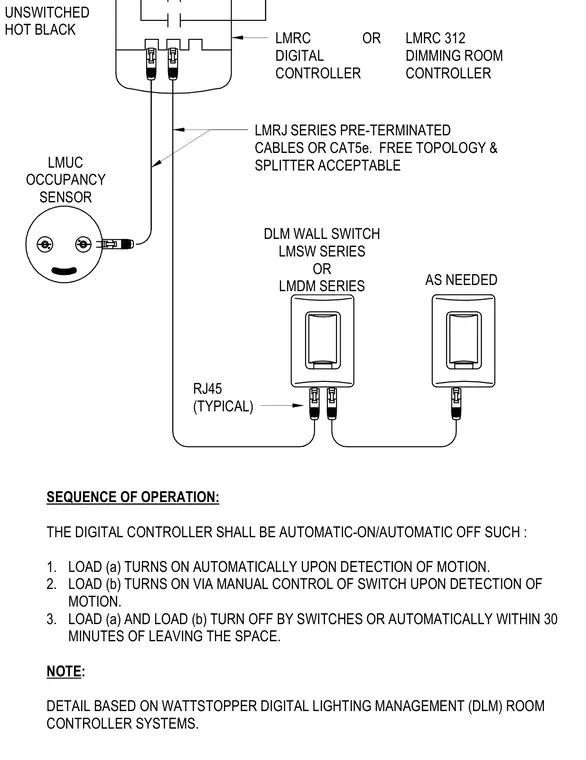

An LMRC or LMRC 312 digital dimming room controller connects to an LMUC occupancy sensor and DLM wall switches of the LMSW or LMDM series using pre-terminated LMRJ series cables or Cat5e with RJ45 connections in a free topology layout. The digital controller receives an unswitched hot black power feed. The control logic mandates automatic-on and automatic-off operation where load 'a' turns on automatically upon motion detection, load 'b' turns on via manual switch control upon motion detection, and both loads turn off via switches or automatically within thirty minutes of vacating the space.
LMRJ SERIES PRE-TERMINATED CABLES OR CAT5e. FREE TOPOLOGY & SPLITTER ACCEPTABLE DLM WALL SWITCH LMSW SERIES OR LMDM SERIES AS NEEDED RJ45 (TYPICAL) LMUC OCCUPANCY SENSOR LMRC OR LMRC 312 DIGITAL DIMMING ROOM CONTROLLER CONTROLLER UNSWITCHED HOT BLACK SEQUENCE OF OPERATION: THE DIGITAL CONTROLLER SHALL BE AUTOMATIC-ON/AUTOMATIC OFF SUCH : 1. LOAD (a) TURNS ON AUTOMATICALLY UPON DETECTION OF MOTION. 2. LOAD (b) TURNS ON VIA MANUAL CONTROL OF SWITCH UPON DETECTION OF MOTION. 3. LOAD (a) AND LOAD (b) TURN OFF BY SWITCHES OR AUTOMATICALLY WITHIN 30 MINUTES OF LEAVING THE SPACE. NOTE: DETAIL BASED ON WATTSTOPPER DIGITAL LIGHTING MANAGEMENT (DLM) ROOM CONTROLLER SYSTEMS.
