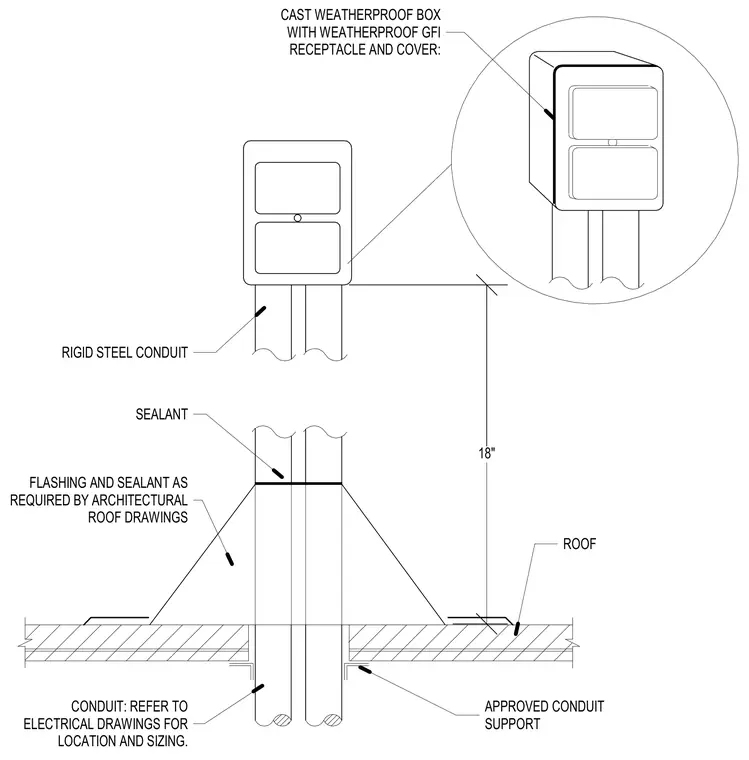

Rigid steel conduits penetrate the roof assembly supported by approved conduit supports beneath the deck. Flashing and sealant are provided at the roof surface as required by architectural roof drawings. A cast weatherproof box with a weatherproof GFI receptacle and cover is mounted on the conduits at a height of eighteen inches above the roof.
18" SEALANT RIGID STEEL CONDUIT FLASHING AND SEALANT AS REQUIRED BY ARCHITECTURAL ROOF DRAWINGS CONDUIT: REFER TO ELECTRICAL DRAWINGS FOR LOCATION AND SIZING. APPROVED CONDUIT SUPPORT ROOF CAST WEATHERPROOF BOX WITH WEATHERPROOF GFI RECEPTACLE AND COVER:
