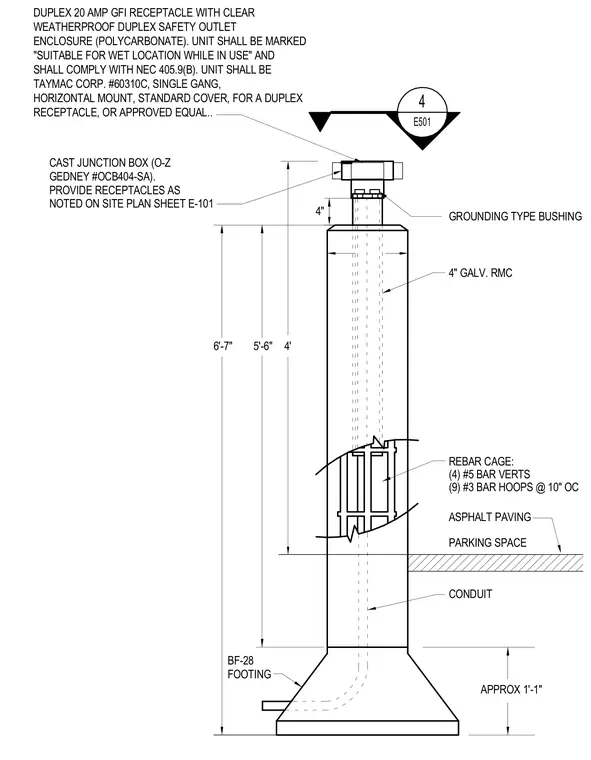

This electrical detail shows a headbolt outlet bollard supported by a reinforced concrete footing set below asphalt paving. The assembly features a four-inch galvanized rigid metal conduit extending through the center of the bollard and terminating at a cast junction box with a grounding type bushing. A weatherproof twenty-ampere ground fault interrupter duplex receptacle in a single-gang polycarbonate enclosure mounts to the top of the bollard. The concrete bollard is reinforced with a cage consisting of four number five vertical bars and nine number three bar hoops spaced at ten inches on center. The footing and overall height dimensions anchor the bollard unit within the parking space site conditions.
4 E501 PARKING SPACE TAYMAC CORP. #60310C, SINGLE GANG, WEATHERPROOF DUPLEX SAFETY OUTLET ENCLOSURE (POLYCARBONATE). UNIT SHALL BE MARKED HORIZONTAL MOUNT, STANDARD COVER, FOR A DUPLEX SHALL COMPLY WITH NEC 405.9(B). UNIT SHALL BE "SUITABLE FOR WET LOCATION WHILE IN USE" AND DUPLEX 20 AMP GFI RECEPTACLE WITH CLEAR GROUNDING TYPE BUSHING RECEPTACLE, OR APPROVED EQUAL.. ASPHALT PAVING 4' 4" GALV. RMC REBAR CAGE: (4) #5 BAR VERTS (9) #3 BAR HOOPS @ 10" OC CONDUIT APPROX 1'-1" 4" 5'-6" 6'-7" BF-28 FOOTING NOTED ON SITE PLAN SHEET E-101 GEDNEY #OCB404-SA). PROVIDE RECEPTACLES AS CAST JUNCTION BOX (O-Z
