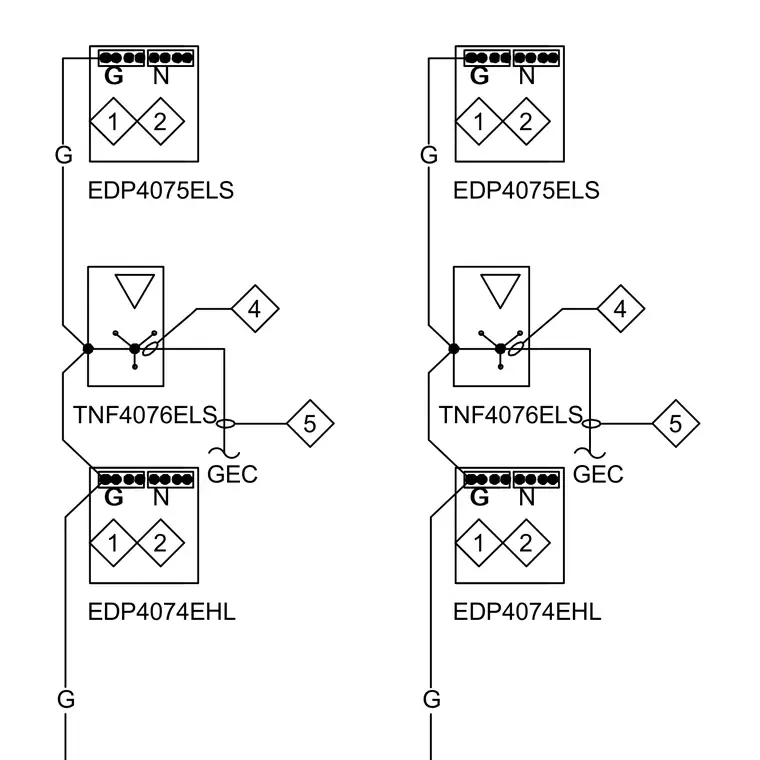

Electrical panels EDP4075ELS, TNF4076ELS, and EDP4074EHL are interconnected with equipment grounding conductors labeled G. Panel TNF4076ELS interfaces with grounding electrode conductor GEC and tagged references four and five. Neutral and ground terminal bars are detailed for each panel enclosure.
TNF4076ELS EDP4075ELS N G 1 2 G EDP4074EHL N G 1 2 G TNF4076ELS EDP4075ELS N G 1 2 G EDP4074EHL N G 1 2 G GEC GEC 5 4 5 4 G G G G
