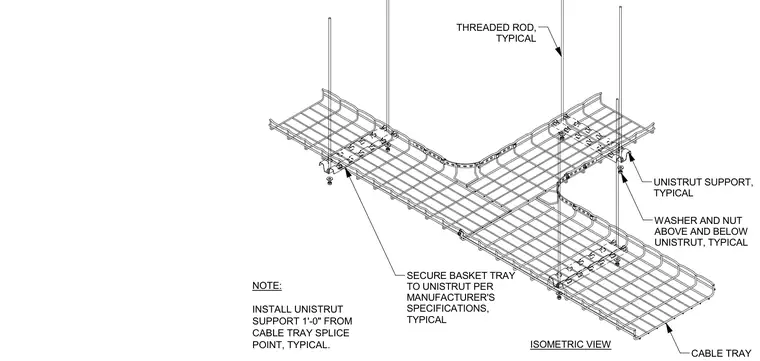

Wire basket cable trays intersect in a junction supported by transverse Unistrut channel members suspended from overhead by vertical threaded rods. Washers and nuts secure the threaded rods to the Unistrut above and below the channel profile. Basket trays attach directly to the Unistrut supports using manufacturer-specified hardware. Unistrut supports install one foot from cable tray splice points.
ISOMETRIC VIEW NOTE: INSTALL UNISTRUT SUPPORT 1'-0" FROM CABLE TRAY SPLICE POINT, TYPICAL. UNISTRUT SUPPORT, TYPICAL THREADED ROD, TYPICAL CABLE TRAY WASHER AND NUT ABOVE AND BELOW UNISTRUT, TYPICAL SECURE BASKET TRAY TO UNISTRUT PER MANUFACTURER'S SPECIFICATIONS, TYPICAL
