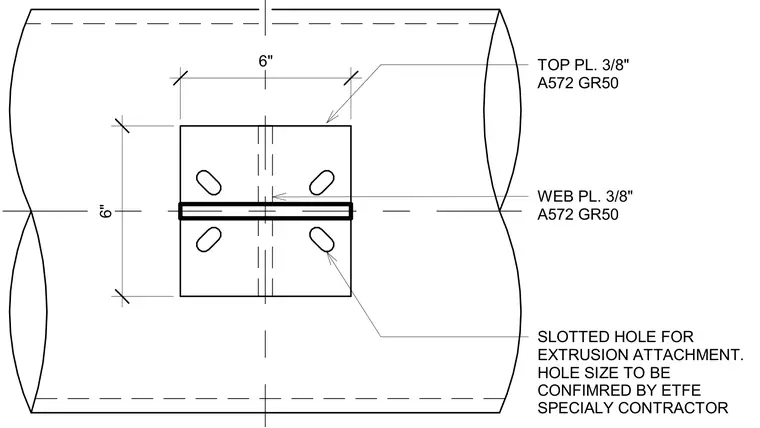

An ETFE extrusion attachment plate connection features 3/8-inch A572 Grade 50 top and web plates measuring 6 inches by 6 inches. The connection incorporates slotted holes for extrusion attachment, with the exact hole size to be confirmed by the ETFE specialty contractor.
6" 6" SLOTTED HOLE FOR EXTRUSION ATTACHMENT. HOLE SIZE TO BE CONFIMRED BY ETFE SPECIALY CONTRACTOR TOP PL. 3/8" A572 GR50 WEB PL. 3/8" A572 GR50
