Boiler Emergency Shutdown Switch

About this detail

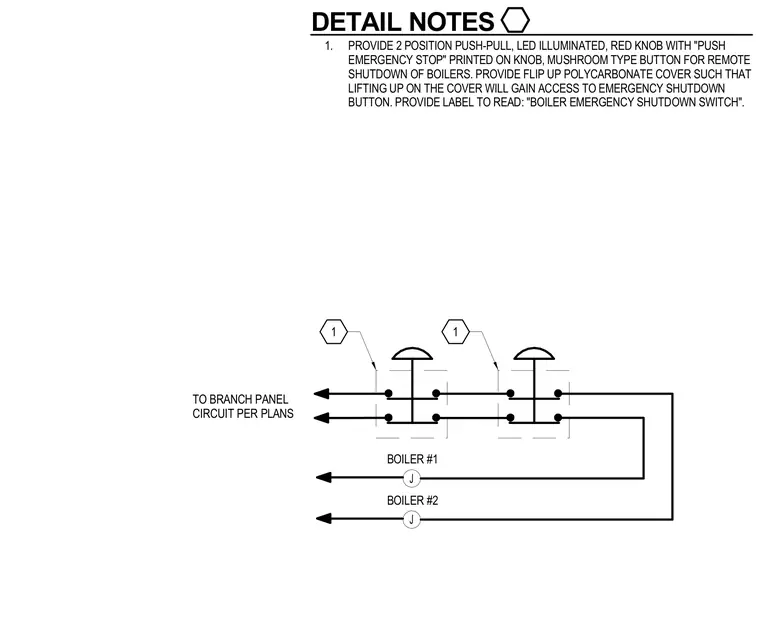

The installation requires a two-position push-pull, LED illuminated, red knob with push emergency stop printed on the mushroom-type button for remote shutdown of boilers. A flip-up polycarbonate cover is provided to prevent accidental activation while allowing access by lifting the cover. An engraved label reading BOILER EMERGENCY SHUTDOWN SWITCH must accompany the device, wired back to the branch panel circuit per plans for each boiler.
