Electrical · E-4M2CX

Via Bodine Relay

About this detail

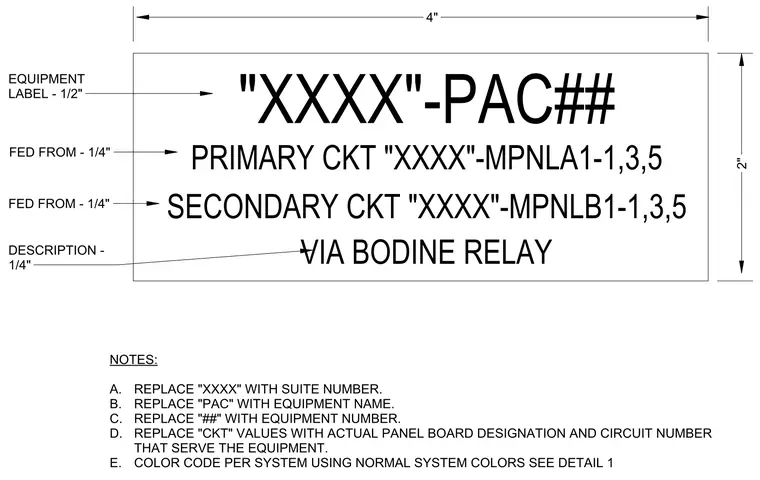

This electrical label detail specifies the formatting for equipment identification and circuit feeds powered via a Bodine relay. The main equipment label features half-inch lettering with placeholders for suite numbers, equipment names, and equipment numbers. Two quarter-inch lines indicate the primary circuit fed from panel board designation and circuit numbers, as well as the secondary circuit fed from an alternate panel board. An additional quarter-inch description line specifies the relay connection. Accompanying notes instruct on replacing placeholder text with actual values and applying normal system color coding.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
