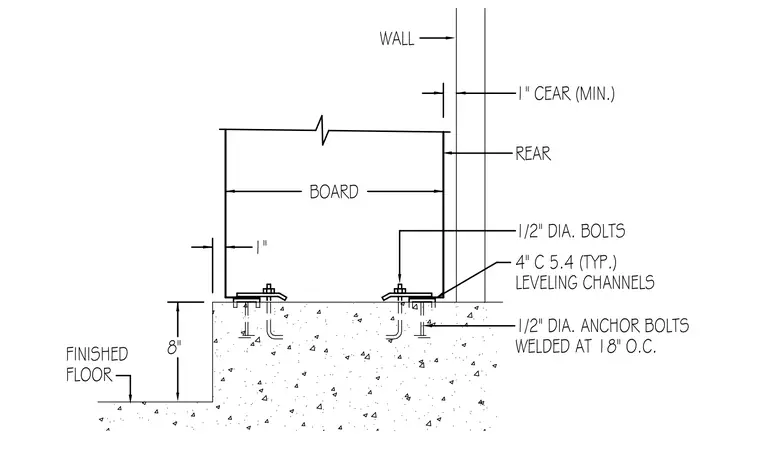

Four-inch C 5.4 leveling channels support the switchboard and anchor to an eight-inch concrete housekeeping pad. One-half-inch diameter anchor bolts secure the channels to the concrete at eighteen inches on center. One-half-inch diameter bolts fasten the switchboard base to the leveling channels. A minimum clearance of one inch exists between the rear of the switchboard and the adjacent wall.
