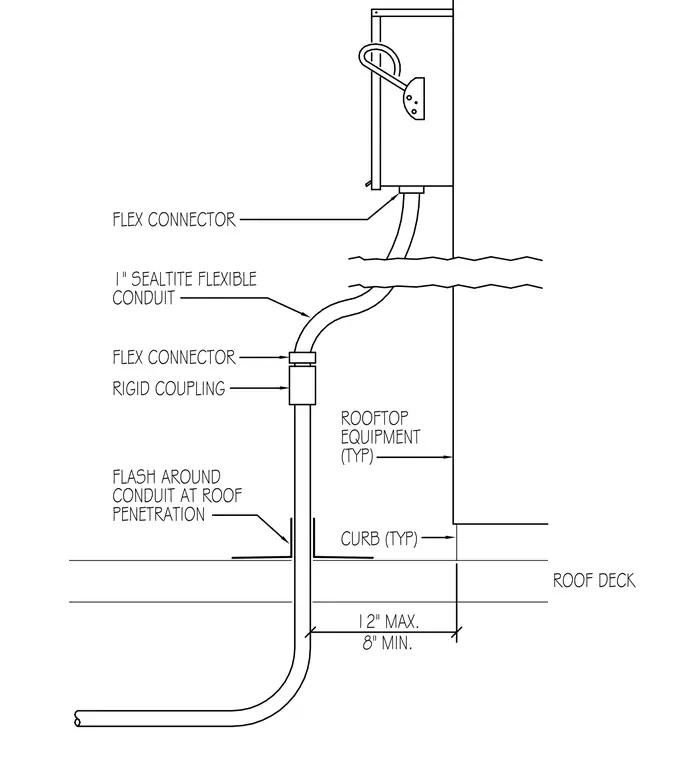

A rooftop equipment disconnect mounts adjacent to a curb. A one-inch Sealtite flexible conduit connects to the equipment via a flex connector and transitions to rigid conduit through a rigid coupling and a second flex connector. The conduit penetrates the roof deck through a curb, requiring flashing around the conduit at the roof penetration. The penetration is located between eight inches minimum and twelve inches maximum from the equipment curb.
