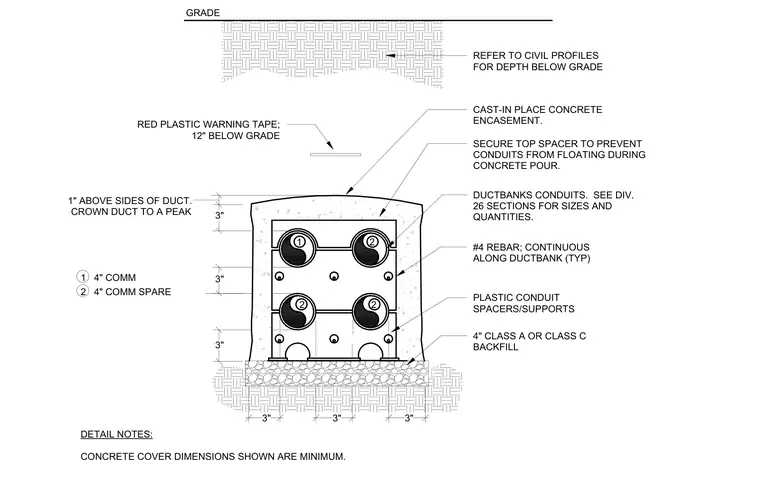

This electrical ductbank detail shows a cast-in-place concrete encasement surrounding a 2x2 arrangement of four-inch communication conduits and four-inch communication spare conduits. The assembly rests on a four-inch class A or class C backfill base and includes plastic conduit spacers and supports to maintain alignment and prevent conduit float during the concrete pour. Continuous number 4 reinforcing bars run longitudinally along the ductbank corners. The concrete top is crowned to a peak one inch above the sides of the duct. Red plastic warning tape is positioned twelve inches below grade.
3" 3" 3" 1" ABOVE SIDES OF DUCT. CROWN DUCT TO A PEAK SECURE TOP SPACER TO PREVENT CONDUITS FROM FLOATING DURING CONCRETE POUR. DUCTBANKS CONDUITS. SEE DIV. 26 SECTIONS FOR SIZES AND QUANTITIES. #4 REBAR; CONTINUOUS ALONG DUCTBANK (TYP) 4" CLASS A OR CLASS C BACKFILL PLASTIC CONDUIT SPACERS/SUPPORTS DETAIL NOTES: CONCRETE COVER DIMENSIONS SHOWN ARE MINIMUM. RED PLASTIC WARNING TAPE; 12" BELOW GRADE 3" 3" 1 2 2 2 3" 1 4" COMM 2 4" COMM SPARE GRADE REFER TO CIVIL PROFILES FOR DEPTH BELOW GRADE CAST-IN PLACE CONCRETE ENCASEMENT.
