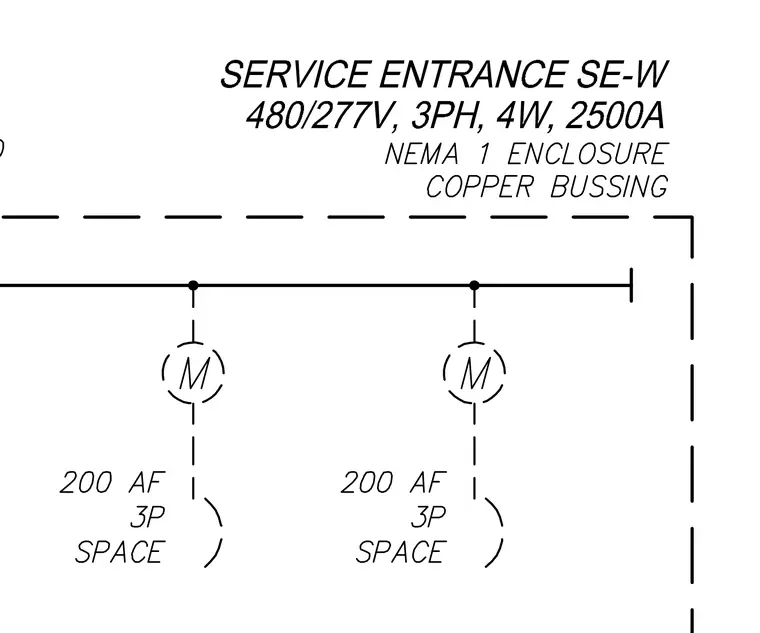

The electrical service entrance is rated for 480/277 volts, three-phase, four-wire service at 2500 amperes. The assembly includes a NEMA 1 enclosure housing copper bussing. Meter sockets connect to feeder spaces rated at 200 ampere frame, three-phase.
