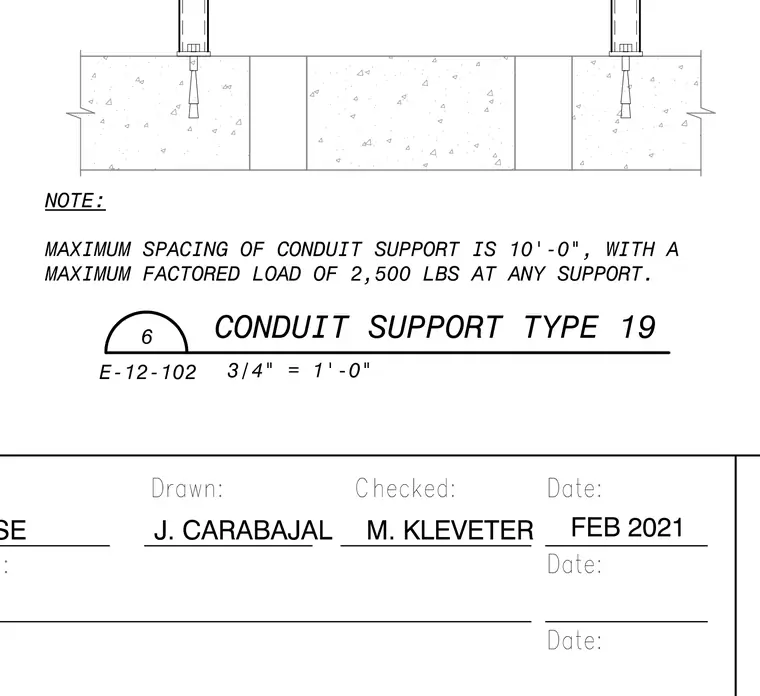

Conduits are suspended or anchored above a concrete structural element, maintained at a maximum spacing of ten feet zero inches. The support assembly is rated for a maximum factored load of 2500 pounds at any support location. The detail includes structural annotations and notes governing the installation parameters of conduit support type 19.
m nn NOTE: MAXIMUM SPACING OF CONDUIT SUPPORT IS 10' -0", WITH A MAXIMUM FACTORED LOAD OF 2,500 LBS AT ANY SUPPORT. CONDUIT SUPPORT TYPE 19 1' -0" E-12-102 3/4 4 4 4 Designed: GEISE Drawn: C hecked: Date: J. CARABAJAL M. KLEVETER FEB 2021 Submitted: Date: Date:
