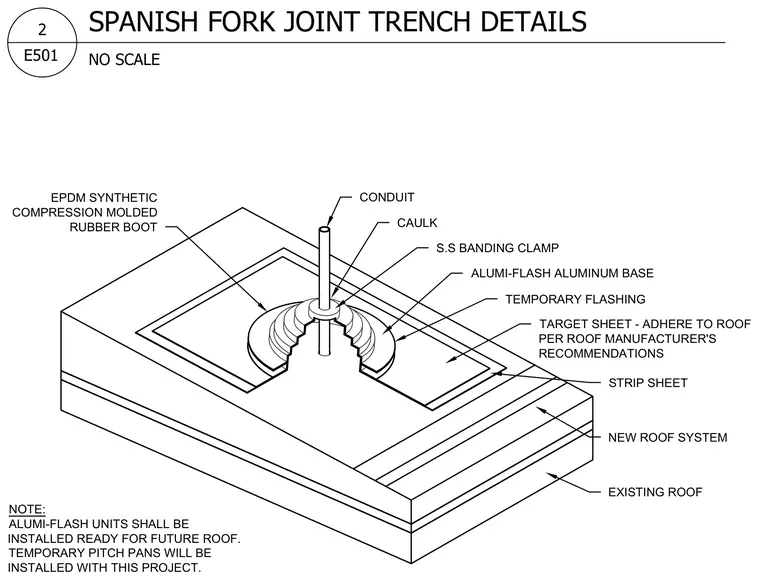

An EPDM synthetic compression molded rubber boot seals around a vertical conduit penetration on a roof assembly. The boot secures to the conduit using a stainless steel banding clamp with a bead of caulk at the top. An aluminum flash base sits atop a temporary flashing layer, which is integrated with a target sheet adhered to the roof per the manufacturer's recommendations. A strip sheet bridges the new roof system over the existing roof layers.
E501 2 SPANISH FORK JOINT TRENCH DETAILS NO SCALE NOTE: ALUMI-FLASH UNITS SHALL BE INSTALLED READY FOR FUTURE ROOF. TEMPORARY PITCH PANS WILL BE INSTALLED WITH THIS PROJECT. EPDM SYNTHETIC COMPRESSION MOLDED RUBBER BOOT CONDUIT CAULK S.S BANDING CLAMP ALUMI-FLASH ALUMINUM BASE TEMPORARY FLASHING TARGET SHEET - ADHERE TO ROOF PER ROOF MANUFACTURER'S RECOMMENDATIONS STRIP SHEET NEW ROOF SYSTEM EXISTING ROOF
