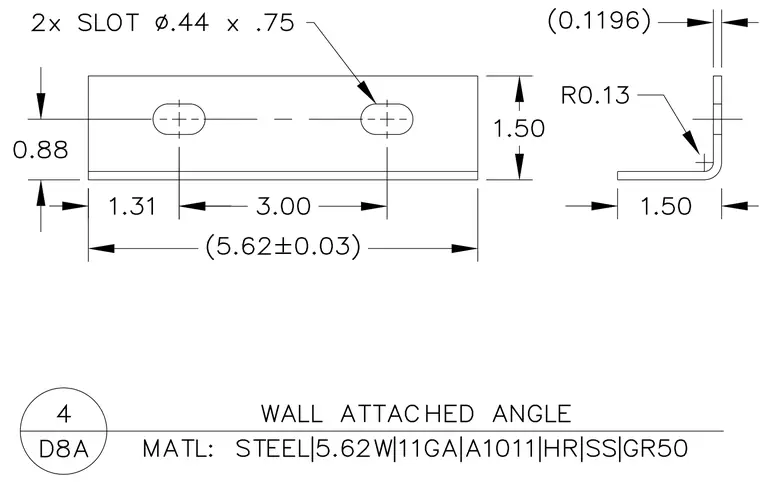

This wall attached angle is fabricated from 11-gauge hot-rolled steel conforming to ASTM A1011 Grade 50 with a width of 5.62 inches. The component features an equal leg dimension of 1.50 inches by 1.50 inches with a 0.13-inch inside bend radius. Two slotted holes measuring 0.44 inches in diameter by 0.75 inches long are punched along the center axis at 3.00 inches on center, positioned 1.31 inches from the edge. The overall length is 5.62 inches with a manufacturing tolerance of plus or minus 0.03 inches.
3.00 (5.62±0.03) 0.88 1.31 (0.1196) 1.50 1.50 2x SLOT ∅.44 x .75 R0.13 WALL ATTACHED ANGLE 4 D8A MATL: STEEL|5.62W|11GA|A1011|HR|SS|GR50 I -+- V [
