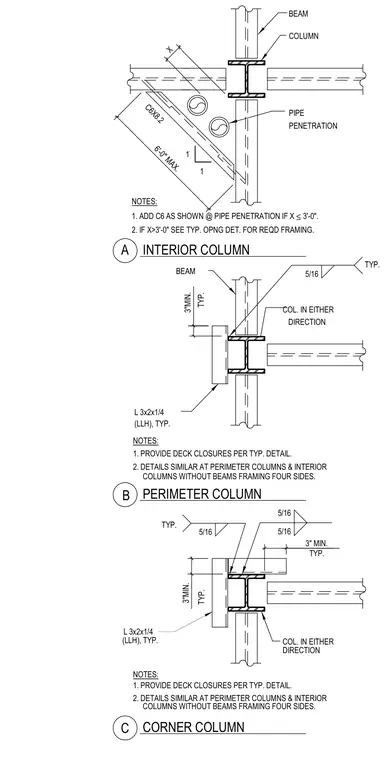

Metal deck support at steel columns consists of angle framing and channel reinforcement around penetrations. An L 3x2x1/4 angle connects the deck bearing condition at columns without beams framing four sides, secured with five-sixteenths inch fillet welds. A C6x8.2 channel is added at pipe penetrations when dimension X is less than or equal to three feet, with a maximum span of six feet. When dimension X exceeds three feet, opening details govern the required framing. Deck closures are provided at all perimeter and interior column conditions.
PERIMETER COLUMN B CORNER COLUMN C INTERIOR COLUMN A NOTES: NOTES: NOTES: (LLH), TYP. L 3x2x1/4 COLUMNS WITHOUT BEAMS FRAMING FOUR SIDES. 2. DETAILS SIMILAR AT PERIMETER COLUMNS & INTERIOR 1. PROVIDE DECK CLOSURES PER TYP. DETAIL. COL. IN EITHER DIRECTION TYP. COLUMNS WITHOUT BEAMS FRAMING FOUR SIDES. 2. DETAILS SIMILAR AT PERIMETER COLUMNS & INTERIOR 1. ADD C6 AS SHOWN @ PIPE PENETRATION IF X ≤ 3'-0". 2. IF X>3'-0" SEE TYP. OPNG DET. FOR REQD FRAMING. 1. PROVIDE DECK CLOSURES PER TYP. DETAIL. BEAM COLUMN COL. IN EITHER L 3x2x1/4 (LLH), TYP. BEAM TYP. PIPE PENETRATION DIRECTION C6X8.2 1 1 5/16 5/16 5/16 5/16 TYP. 3" MIN. TYP. 3"MIN. TYP. X 6'-0" MAX. 3"MIN.
