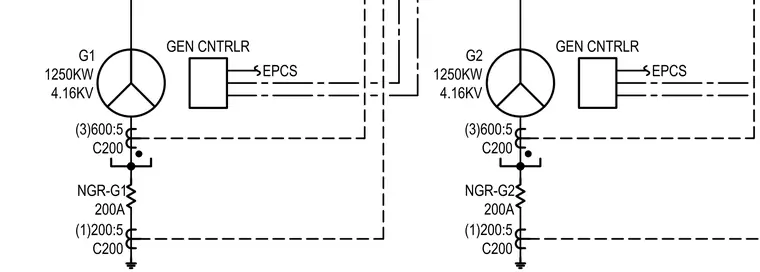

Two 1250kW generators operating at 4.16kV are configured with dedicated generator controllers and neutral grounding resistors. Each generator circuit includes 600:5 and 200:5 current transformers with C200 ratings. Neutral grounding resistors are specified at 200A for each generator path.
G1 1250KW 4.16KV NGR-G1 200A (3)600:5 C200 G2 1250KW 4.16KV NGR-G2 200A (1)200:5 C200 (3)600:5 C200 (1)200:5 C200 GEN CNTRLR EPCS GEN CNTRLR EPCS
