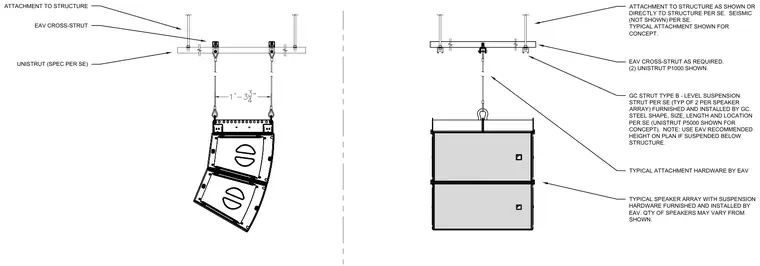

An L-Acoustics speaker array hangs from overhead structure using two Unistrut P1000 channels and leveling suspension struts furnished by the general contractor. The cross-struts and structural attachment hardware are sized and installed per the structural engineer. Typical speaker array units and associated suspension hardware are furnished and installed by the audiovisual contractor. Seismic bracing is provided as required per structural engineering specifications.
EAV CROSS-STRUT ATTACHMENT TO STRUCTURE AS SHOWN OR DIRECTLY TO STRUCTURE PER SE. SEISMIC (NOT SHOWN) PER SE. TYPICAL ATTACHMENT SHOWN FOR CONCEPT. EAV CROSS-STRUT AS REQUIRED. (2) UNISTRUT P1000 SHOWN. GC STRUT TYPE B - LEVEL SUSPENSION STRUT PER SE (TYP OF 2 PER SPEAKER ARRAY) FURNISHED AND INSTALLED BY GC. STEEL SHAPE, SIZE, LENGTH AND LOCATION PER SE (UNISTRUT P5000 SHOWN FOR CONCEPT). NOTE: USE EAV RECOMMENDED HEIGHT ON PLAN IF SUSPENDED BELOW STRUCTURE. TYPICAL SPEAKER ARRAY WITH SUSPENSION HARDWARE FURNISHED AND INSTALLED BY EAV. QTY OF SPEAKERS MAY VARY FROM SHOWN. UNISTRUT (SPEC PER SE) ATTACHMENT TO STRUCTURE TYPICAL ATTACHMENT HARDWARE BY EAV
