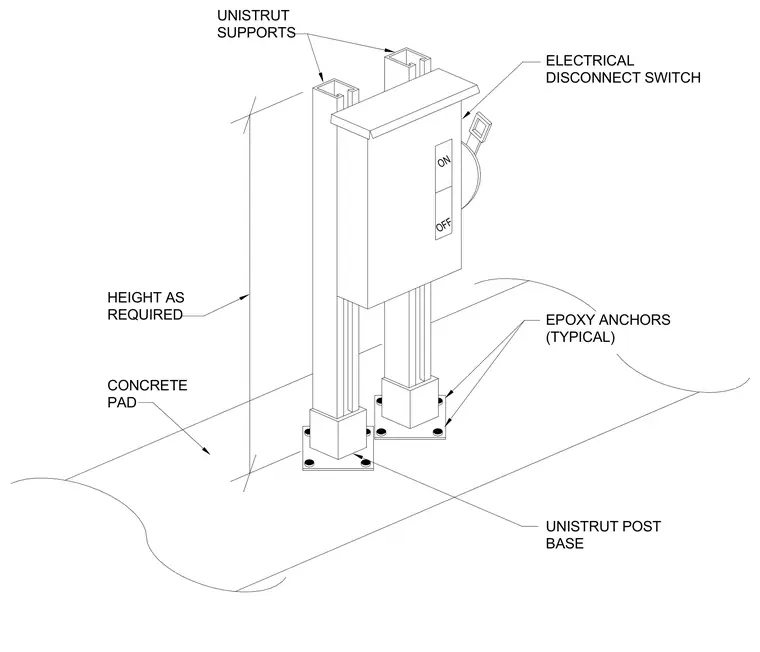

An electrical disconnect switch is mounted to vertical Unistrut supports resting on Unistrut post bases. The post bases are secured to a concrete pad using typical epoxy anchors. The overall height of the support assembly is determined as required by site conditions.
ON OFF ELECTRICAL DISCONNECT SWITCH UNISTRUT SUPPORTS EPOXY ANCHORS (TYPICAL) HEIGHT AS REQUIRED UNISTRUT POST BASE CONCRETE PAD
