Multiple configurations support electrical raceways ranging from three-quarters of an inch to six inches in diameter from overhead structural units. A beam clamp or hanger clamp is secured to the structural unit according to the weight supported, utilizing all-threaded rod sized as required for dropped raceway runs or direct attachment options. Conduit hangers secure raceways sized from three-quarters of an inch to one inch directly to clamps or threaded rods. A specific note mandates that wire shall not be used as a component of any raceway hanger system.

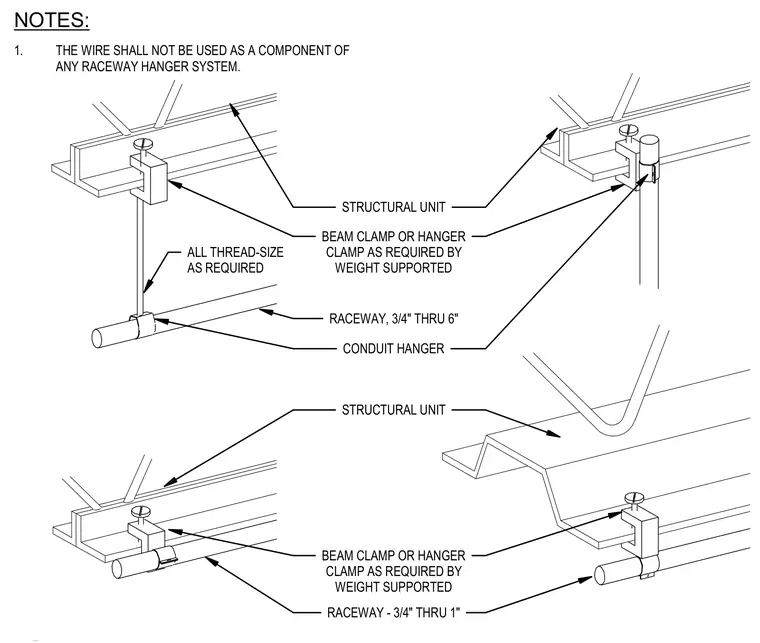

RACEWAY, 3/4" THRU 6" CONDUIT HANGER STRUCTURAL UNIT RACEWAY - 3/4" THRU 1" STRUCTURAL UNIT BEAM CLAMP OR HANGER CLAMP AS REQUIRED BY WEIGHT SUPPORTED ALL THREAD-SIZE AS REQUIRED BEAM CLAMP OR HANGER CLAMP AS REQUIRED BY WEIGHT SUPPORTED NOTES: 1. THE WIRE SHALL NOT BE USED AS A COMPONENT OF ANY RACEWAY HANGER SYSTEM.
