Electrical · E-3TKF5

Wet Scrubber Drain Pump 1 VFD Control and Power Diagram

Elements

About this detail

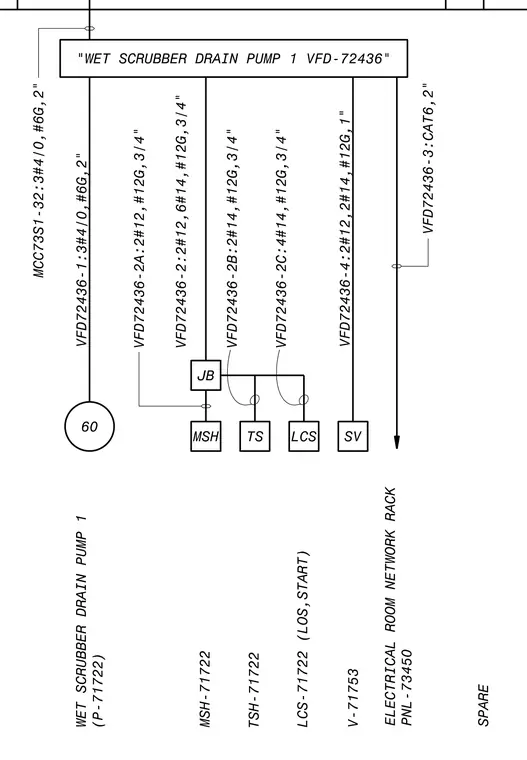

This electrical schematic details the power feed and control wiring for wet scrubber drain pump one driven by variable frequency drive VFD-72436. Power originates from motor control center panel MCC73S1-32 via a feeder of three 4/0 conductors, a number 6 ground, in a two-inch conduit. Control circuits connect local control station LCS-71722, temperature switch TSH-71722, moisture switch MSH-71722, and solenoid valve V through a junction box and various multi-conductor cable runs. Network communication runs via a Category 6 cable back to the electrical room network rack.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
