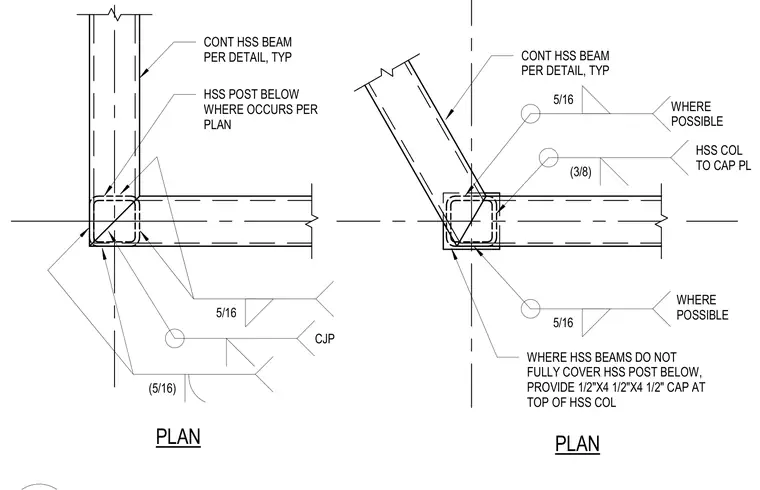

Continuous hollow structural section beams intersect at parapet corners over a hollow structural section post below, secured with five-sixteenth-inch and three-eighths-inch welds including complete joint penetration welds where indicated. Where the hollow structural section beams do not fully cover the hollow structural section post below, a one-half-inch by four-and-one-half-inch by four-and-one-half-inch cap plate is provided at the top of the hollow structural section column.
CONT HSS BEAM PER DETAIL, TYP HSS POST BELOW WHERE OCCURS PER PLAN 5/16 (5/16) CJP CONT HSS BEAM PER DETAIL, TYP WHERE HSS BEAMS DO NOT FULLY COVER HSS POST BELOW, PROVIDE 1/2"X4 1/2"X4 1/2" CAP AT TOP OF HSS COL (3/8) HSS COL TO CAP PL 5/16 5/16 WHERE POSSIBLE WHERE POSSIBLE PLAN PLAN
