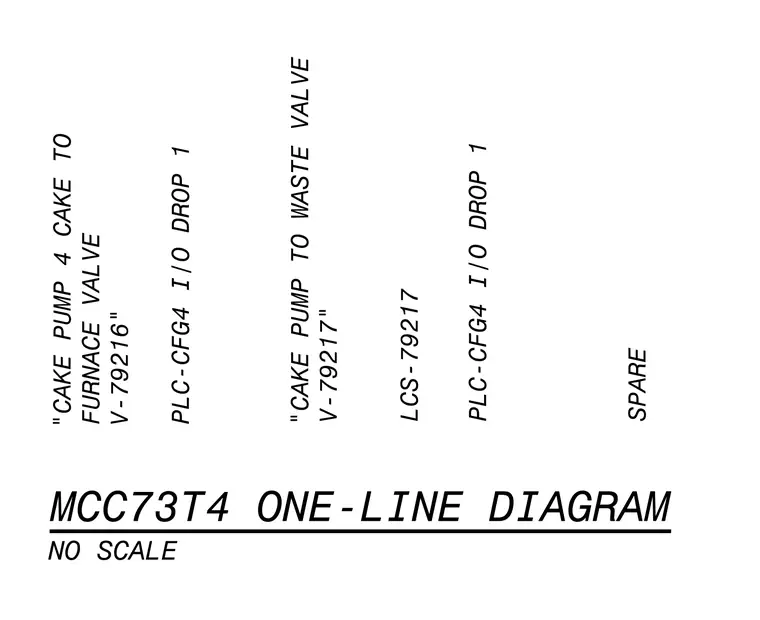

This electrical one-line diagram details MCC73T4 connections including PLC-CFG4 I/O drops, local control station LCS-79217, and valve controls for cake pump 4 to furnace valve V-79216 and cake pump to waste valve V-79217. A spare PLC I/O drop is also included.
MCC73T4 ONE-LINE DIAGRAM NO SCALE SPARE PLC-CFG4 1/0 DROP 1 LCS-79217 "CAKE PUMP TO WASTE VALVE V-79217" PLC-CFG4 1/0 DROP 1 " CAKE PUMP 4 CAKE TO FURNACE VALVE V-79216“
