Generator control connections include lines routed to the building automation system, lighting networks, and a contact signal from the generator. Power is supplied via a one-and-a-quarter-inch conduit with manufacturer-recommended wiring operating on a one hundred twenty volt or two hundred seventy-seven volt circuit.

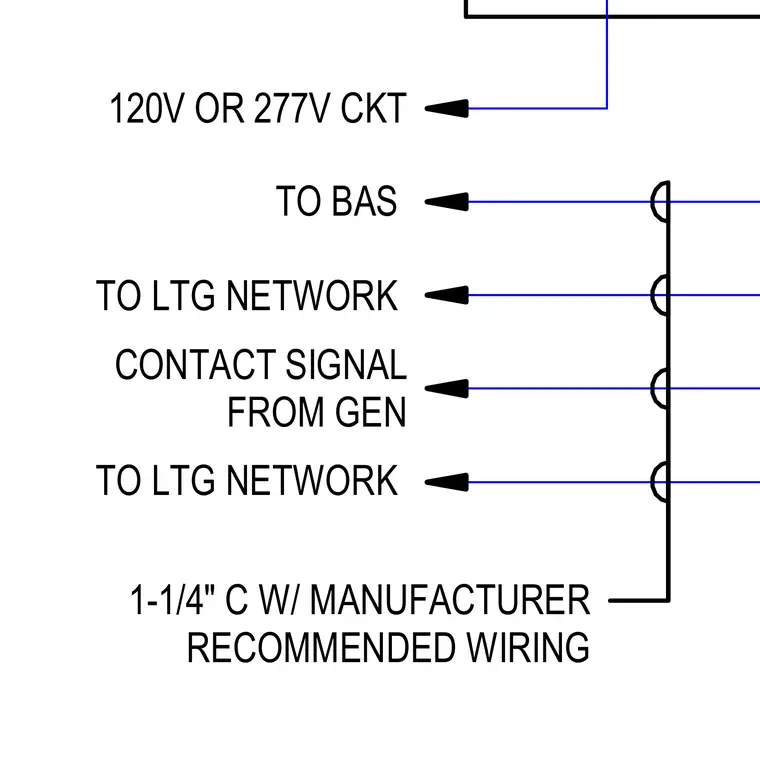

TO BAS TO LTG NETWORK TO LTG NETWORK CONTACT SIGNAL FROM GEN 120V OR 277V CKT 1-1/4" C W/ MANUFACTURER RECOMMENDED WIRING
