The TVI-LMF-2A Ecosystem to 0-10V interface measures 4.2 inches wide by 3.0 inches high by 1.0 inch deep and connects one unit per 0-10V fixture. An input feed connects to the interface, which outputs to a 0-10V LED driver provided by others. The digital loop connects to Ecosystem ballasts and modules with a maximum of sixty-four devices per loop.

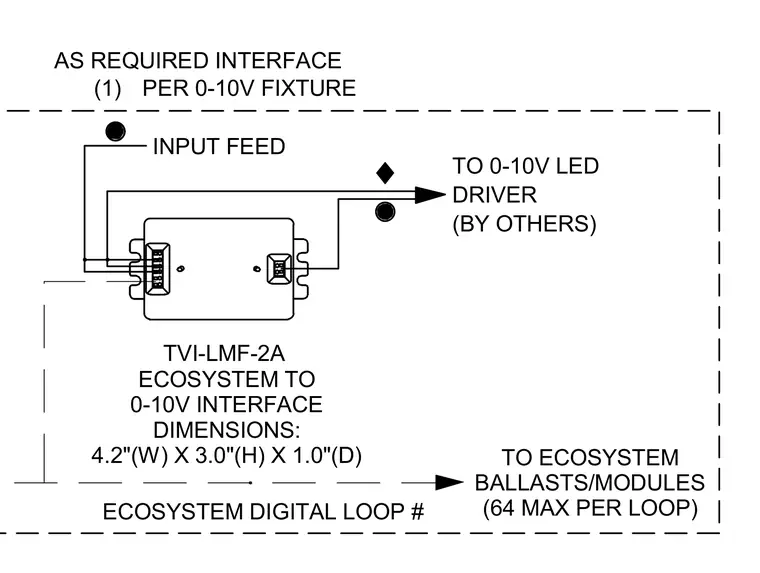

TO 0-10V LED DRIVER (BY OTHERS) TVI-LMF-2A ECOSYSTEM TO 0-10V INTERFACE DIMENSIONS: 4.2"(W) X 3.0"(H) X 1.0"(D) INPUT FEED TO ECOSYSTEM BALLASTS/MODULES (64 MAX PER LOOP) ECOSYSTEM DIGITAL LOOP # AS REQUIRED INTERFACE (1) PER 0-10V FIXTURE
