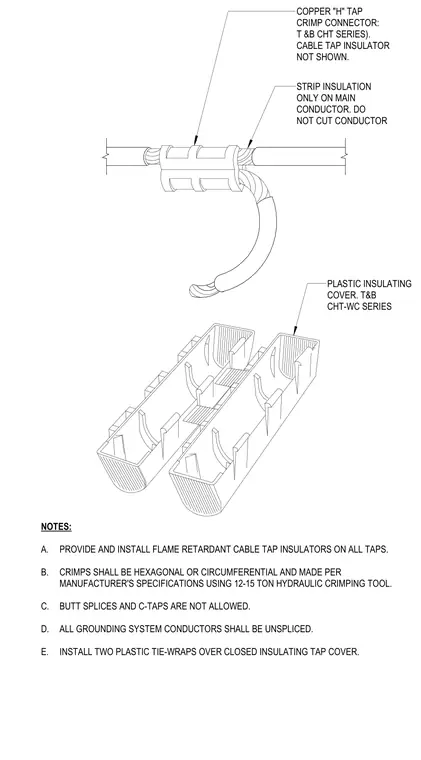

A copper H-tap crimp connector joins the electrical conductors with insulation stripped only on the main conductor without cutting the conductor. Flame retardant cable tap insulators are installed on all taps using a twelve to fifteen ton hydraulic crimping tool to make hexagonal or circumferential crimps per manufacturer specifications. Butt splices and C-taps are prohibited, and all grounding system conductors remain unspliced. A plastic insulating cover from the Thomas and Betts CHT-WC series encloses the tap, secured with two plastic tie-wraps over the closed cover.
COPPER "H" TAP CRIMP CONNECTOR: T &B CHT SERIES). CABLE TAP INSULATOR NOT SHOWN. STRIP INSULATION ONLY ON MAIN CONDUCTOR. DO NOT CUT CONDUCTOR PLASTIC INSULATING COVER. T&B CHT-WC SERIES NOTES: A. PROVIDE AND INSTALL FLAME RETARDANT CABLE TAP INSULATORS ON ALL TAPS. B. CRIMPS SHALL BE HEXAGONAL OR CIRCUMFERENTIAL AND MADE PER MANUFACTURER'S SPECIFICATIONS USING 12-15 TON HYDRAULIC CRIMPING TOOL. C. BUTT SPLICES AND C-TAPS ARE NOT ALLOWED. D. ALL GROUNDING SYSTEM CONDUCTORS SHALL BE UNSPLICED. E. INSTALL TWO PLASTIC TIE-WRAPS OVER CLOSED INSULATING TAP COVER.
