The combustion air blower intake connects to the main ductwork assembly. The ash conveyor system runs adjacent with typical routing. Two rotary air lock valves are integrated into the assembly. A six-inch ash line ties into the system.

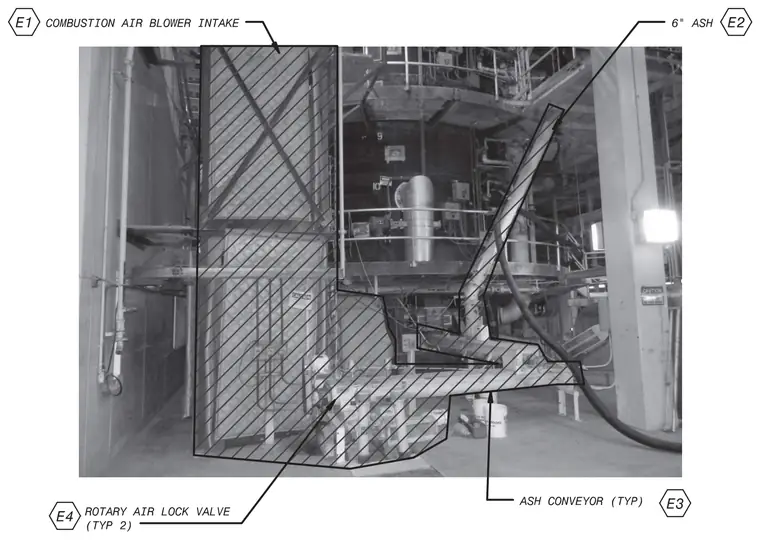

<L> 6" ASH (E2 COMBUSTION AIR BLOWER INTAKE [ •j ' f ■ c * / M / J \ - ' ! ------- ASH CONVEYOR (TYP) E3 ROTARY AIR LOCK VALVE (TYP 2) ----------------------------- E4
