Telecommunications · E-3N33M

Audio Visual Control Panel Button Layouts

Materials

Elements

About this detail

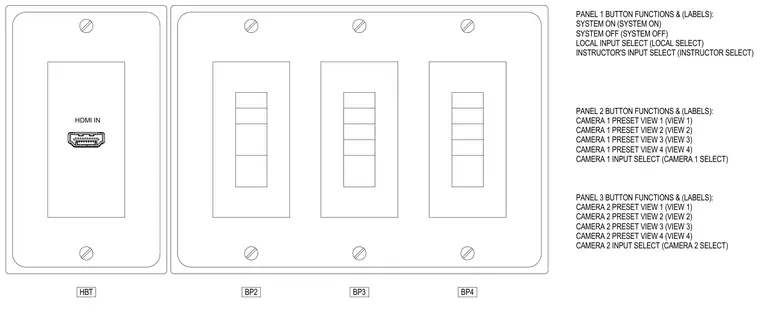

Panel one features an HDMI input connector alongside labeled buttons for system power and input selection. Panels two and three provide multi-button interfaces for camera preset views and input routing. Button labels outline functions for system on and off, local input select, instructor input select, and camera preset views one through four.
