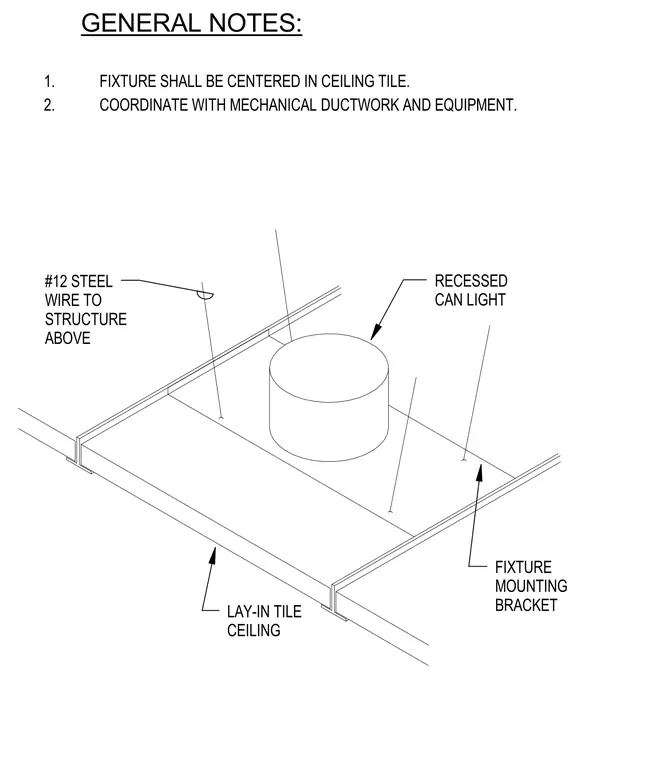

A recessed can light is installed within a lay-in tile ceiling system supported by a fixture mounting bracket. The assembly is suspended from the building structure above using number twelve steel wire. General notes require the fixture to be centered in the ceiling tile and coordinated with mechanical ductwork and equipment.
FIXTURE MOUNTING BRACKET LAY-IN TILE CEILING RECESSED CAN LIGHT #12 STEEL WIRE TO STRUCTURE ABOVE GENERAL NOTES: 1. FIXTURE SHALL BE CENTERED IN CEILING TILE. 2. COORDINATE WITH MECHANICAL DUCTWORK AND EQUIPMENT.
