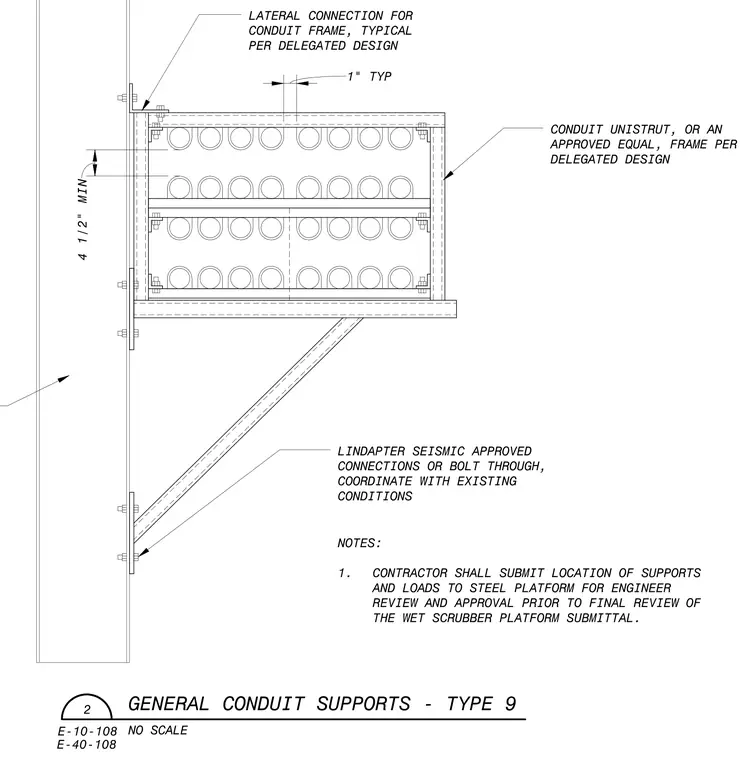

A multi-tier steel conduit support frame is attached to a structural column utilizing Lindapter seismic-approved connections or bolt-through fasteners coordinated with existing conditions. The framing consists of Unistrut channels or an approved equal, configured per delegated design requirements. Lateral connections secure the frame to the support structure with specified clearances. Contractors must submit support locations and loads to the steel platform engineer for review and approval prior to the wet scrubber platform submittal.
LATERAL CONNECTION FOR CONDUIT FRAME, TYPICAL PER DELEGATED DESIGN 1" TYP eg : m dffl rffll - CONDUIT UNISTRUT, OR AN APPROVED EQUAL, FRAME PER DELEGATED DESIGN a nn n TUT W i '/ // eg 1 / / / /. '' / '/ // LINDAPTER SEISMIC APPROVED CONNECTIONS OR BOLT THROUGH, COORDINATE WITH EXISTING CONDITIONS '/ // / y v /. > eg NOTES: eg CONTRACTOR SHALL SUBMIT LOCATION OF SUPPORTS AND LOADS TO STEEL PLATFORM FOR ENGINEER REVIEW AND APPROVAL PRIOR TO FINAL REVIEW OF THE WET SCRUBBER PLATFORM SUBMITTAL. 1. GENERAL CONDUIT SUPPORTS - TYPE 9 E-10-108 NO SCALE E-40-108
