Electrical · E-3JJNJ

One-Line

Materials

weld

Elements

Doors

Connections

Welded Connection

About this detail

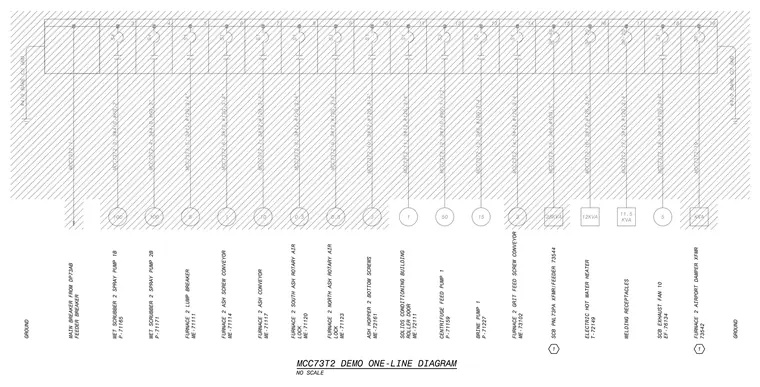

This electrical diagram maps the 12KVA motor control center distribution including feeder breakers, grounding conductors, and branch circuit connections for mechanical equipment. Specific loads include wet scrubber pumps, furnace ash conveyors, rotary air locks, grit feed screw conveyors, and exhaust fans. Circuit designations and conductor sizes are marked across numbered buckets with ground connections tied at both ends.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
