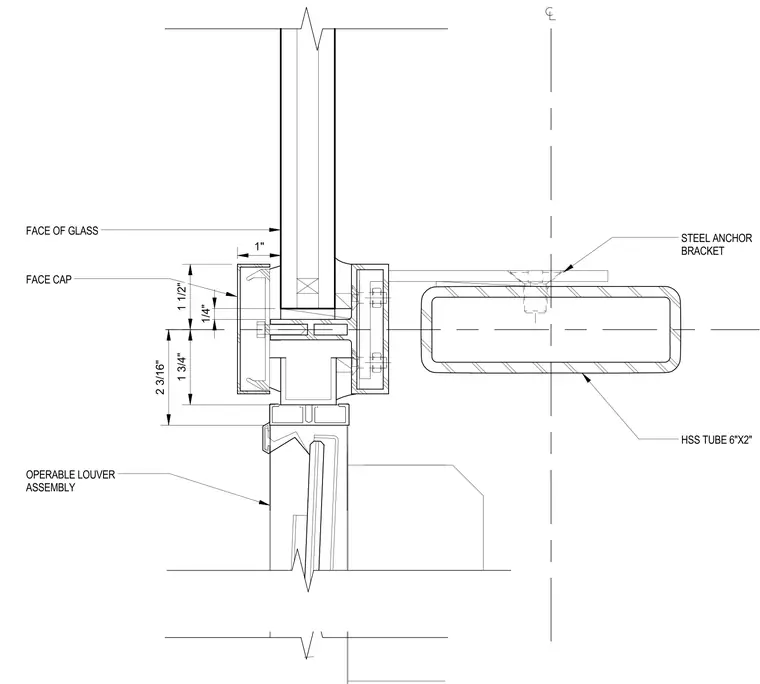

An operable louver assembly connects at its upper termination to a glass glazing system, aligned with the face of glass and secured by a face cap. A six-inch by two-inch hollow structural section tube supports the assembly via a steel anchor bracket. Dimensional callouts indicate clear spacings of one inch, one and one-half inches, and two and three-sixteenths inches at the transition joint.
FACE OF GLASS FACE CAP HSS TUBE 6"X2" STEEL ANCHOR BRACKET OPERABLE LOUVER ASSEMBLY 1 3/4" 1 1/2" 1" 1/4" 2 3/16"
