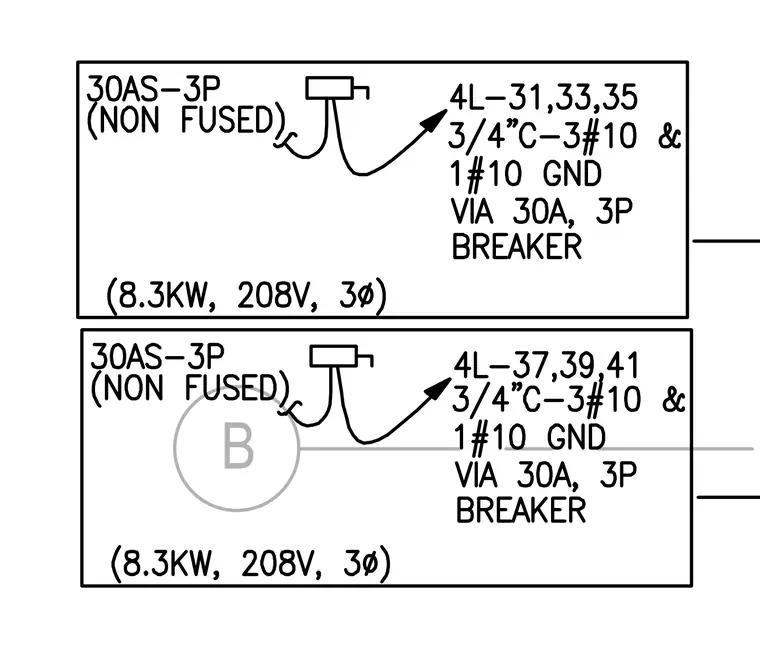

This electrical diagram details a 30-ampere three-pole non-fused safety switch rated for 8.3 kilowatts, 208 volts, and three-phase power. It receives power via a 30-ampere three-pole breaker through a 3/4-inch conduit containing three number 10 wires and one number 10 ground wire connected to panel circuits 31, 33, and 35, or 37, 39, and 41.
