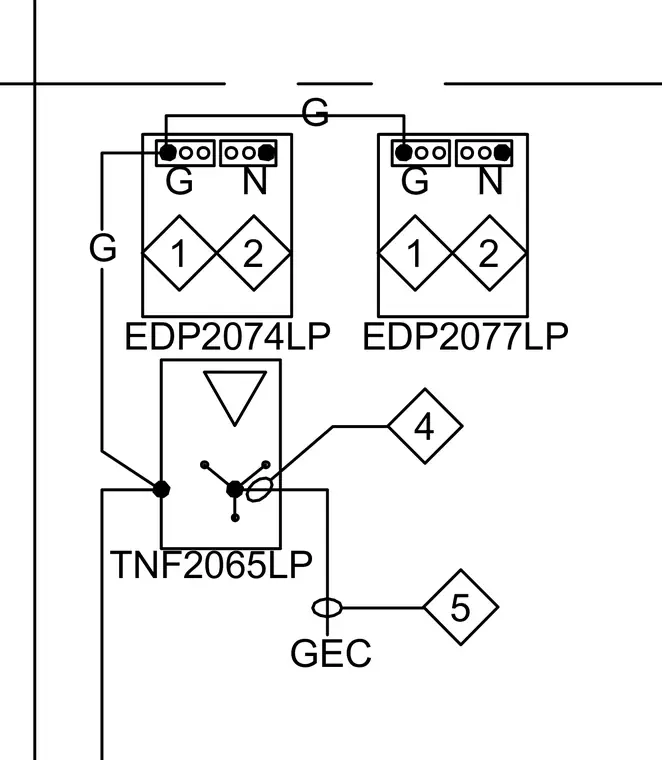

Panel TNF2065LP connects to grounding electrode conductor GEC and routes grounding and neutral conductors to panels EDP2074LP and EDP2077LP.
