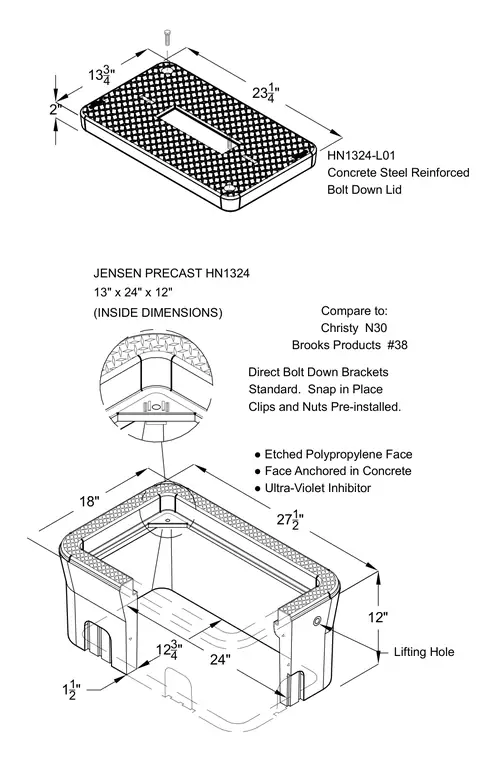

The precast concrete and steel-reinforced box measures thirteen by twenty-four by twelve inches inside with an etched polypropylene face and ultraviolet inhibitor. The bolt-down lid secures directly to standard brackets with pre-installed snap-in-place clips and nuts. Exterior dimensions measure twenty-seven and one-half inches by eighteen inches with a twelve-inch depth, featuring integrated lifting holes.
Compare to: Christy N30 Brooks Products #38 ● Etched Polypropylene Face ● Face Anchored in Concrete ● Ultra-Violet Inhibitor HN1324-L01 Concrete Steel Reinforced Bolt Down Lid Direct Bolt Down Brackets Standard. Snap in Place Clips and Nuts Pre-installed. Lifting Hole 12 3 4 " 24" 27 1 2 " 12" 18" 1 1 2 " 13 3 4 " 23 1 4 " 2" JENSEN PRECAST HN1324 13" x 24" x 12" (INSIDE DIMENSIONS)
