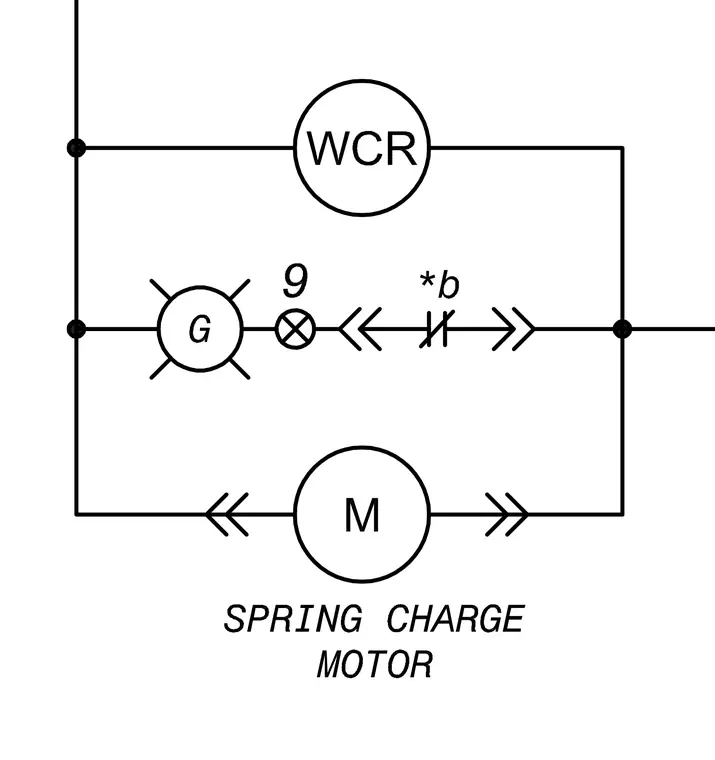

An electrical schematic diagram shows the control circuit for a spring charge motor. The circuit features a relay coil designated as WCR, a generator symbol G, indicator light 9, a set of normally closed contacts labeled with b, and the spring charge motor M wired in parallel branches.
