Electrical · E-3ADMT

Motor Starter and Hand Switch Wiring Diagram

About this detail

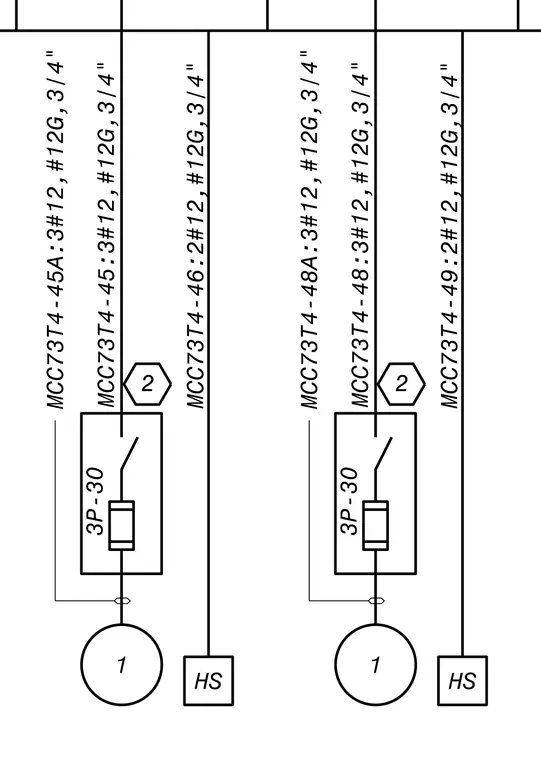

Electrical schematic detailing motor control connections featuring three-pole thirty-ampere fused disconnect switches and hand switches. Circuit designations specify wire sizing with three number twelve conductors and one number twelve ground in three-quarter inch conduit for starter circuits, alongside two number twelve conductors and one number twelve ground in three-quarter inch conduit for hand switches.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
