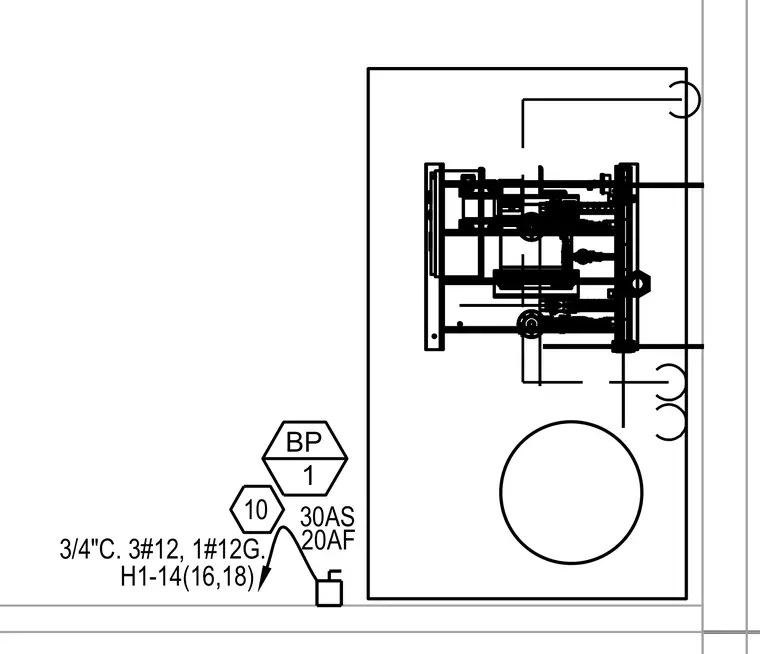

An electrical installation detail showing equipment served by a three-quarter-inch conduit containing three number twelve conductors and one number twelve ground conductor.
30AS 20AF 3/4"C. 3#12, 1#12G. 10 1 BP H1-14(16,18)
