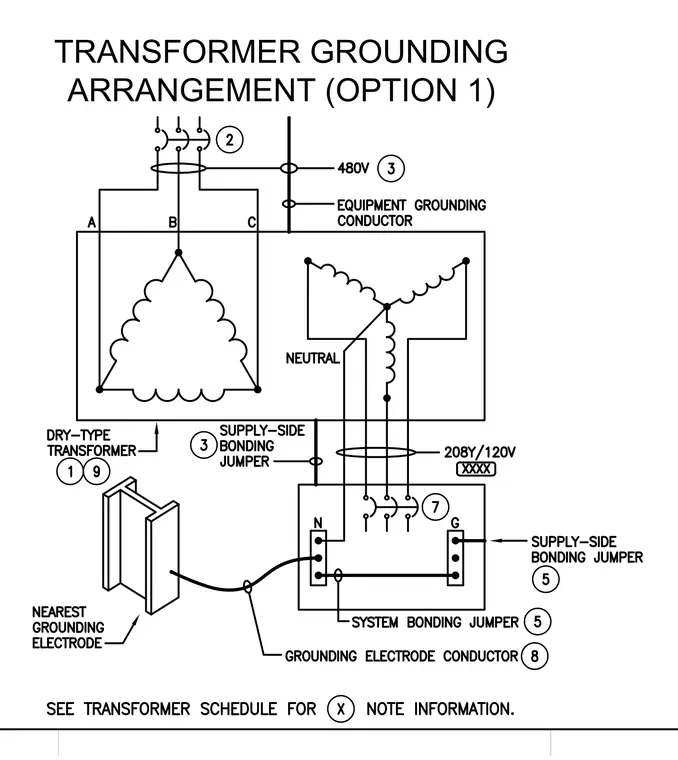

This diagram details the electrical grounding arrangement for a dry-type transformer with a 480V supply and a 208Y/120V secondary distribution. A supply-side bonding jumper connects the equipment grounding conductor to the system neutral. A grounding electrode conductor runs from the neutral bus to the nearest grounding electrode, such as a structural steel column. Additional system bonding jumpers and neutral-to-ground connections are established at the secondary distribution panel.
