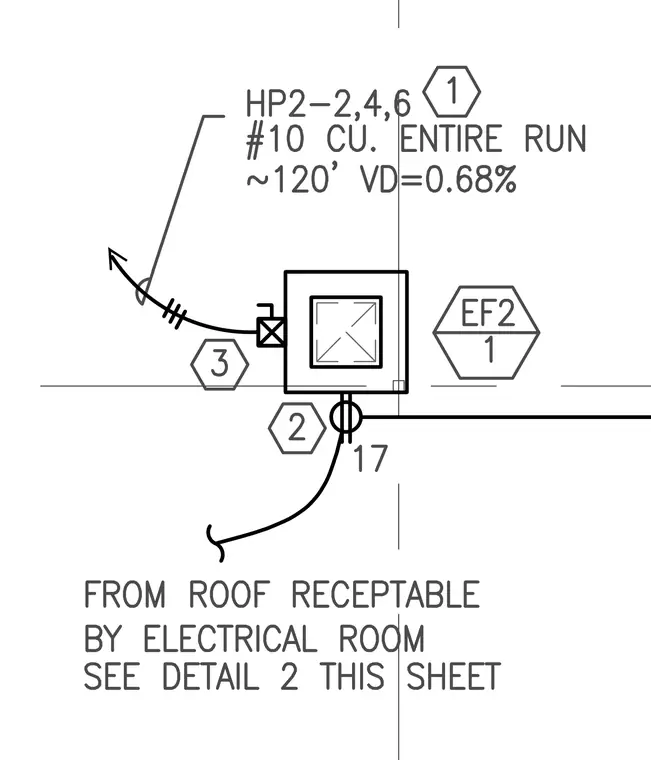

An electrical connection diagram shows equipment labeled EF2-1 fed by circuit HP2-2,4,6 with number 10 copper wire across an entire run of approximately 120 feet with a voltage drop of 0.68 percent. The circuit is fed from a roof receptacle by the electrical room as indicated on detail 2 of the same sheet.
