Electrical · E-335XS

Switchboard Base Bracket Detail at Concrete Floor

Materials

Concrete Steel Glass / Glazing

Elements

Floors / Slabs Anchors / Embeds

Connections

Welded Connection

About this detail

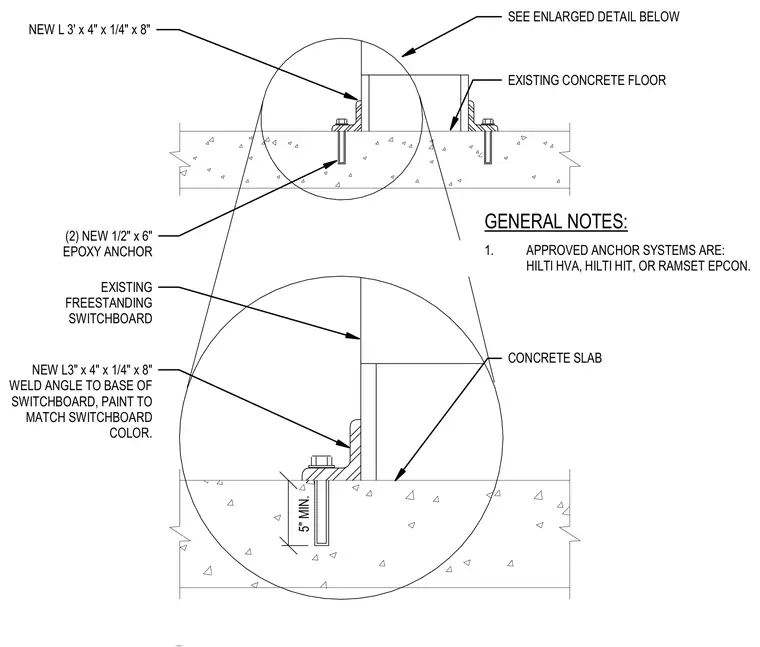

An existing freestanding switchboard is secured to an existing concrete floor using new three-inch by four-inch by quarter-inch by eight-inch steel angle brackets welded to the base of the switchboard and painted to match the unit color. Each angle is anchored to the concrete slab, which has a five-inch minimum thickness, using two half-inch by six-inch epoxy anchors. Approved anchor systems include Hilti HVA, Hilti HIT, or Ramset Epcon.
