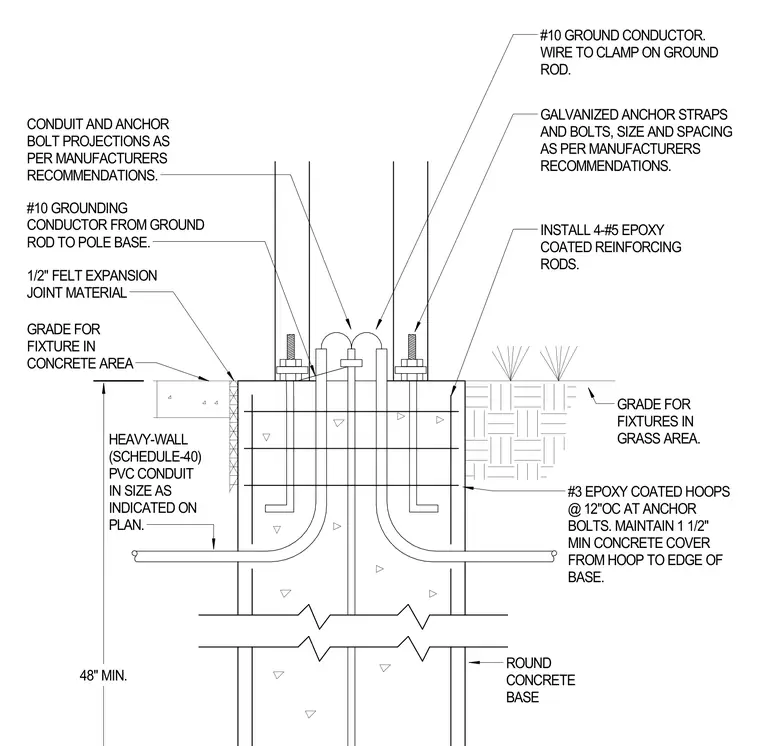

A round concrete base supports a light pole with galvanized anchor straps and bolts sized per manufacturer recommendations. Four number five epoxy-coated reinforcing rods run vertically, supplemented by number three epoxy-coated hoops at twelve inches on center around the anchor bolts, maintaining a one and one-half inch minimum concrete cover. Heavy-wall schedule forty PVC conduit enters the base at a size indicated on the plan. A number ten grounding conductor runs from the ground rod to the pole base, wired to a clamp on the ground rod. A half-inch felt expansion joint material separates the installation at the concrete area grade.
GRADE FOR FIXTURE IN CONCRETE AREA 48" MIN. HEAVY-WALL (SCHEDULE-40) PVC CONDUIT IN SIZE AS INDICATED ON PLAN. #10 GROUNDING CONDUCTOR FROM GROUND ROD TO POLE BASE. 1/2" FELT EXPANSION JOINT MATERIAL CONDUIT AND ANCHOR BOLT PROJECTIONS AS PER MANUFACTURERS RECOMMENDATIONS. ROUND CONCRETE BASE #3 EPOXY COATED HOOPS @ 12"OC AT ANCHOR BOLTS. MAINTAIN 1 1/2" MIN CONCRETE COVER FROM HOOP TO EDGE OF BASE. GRADE FOR FIXTURES IN GRASS AREA. INSTALL 4-#5 EPOXY COATED REINFORCING RODS. GALVANIZED ANCHOR STRAPS AND BOLTS, SIZE AND SPACING AS PER MANUFACTURERS RECOMMENDATIONS. #10 GROUND CONDUCTOR. WIRE TO CLAMP ON GROUND ROD.
