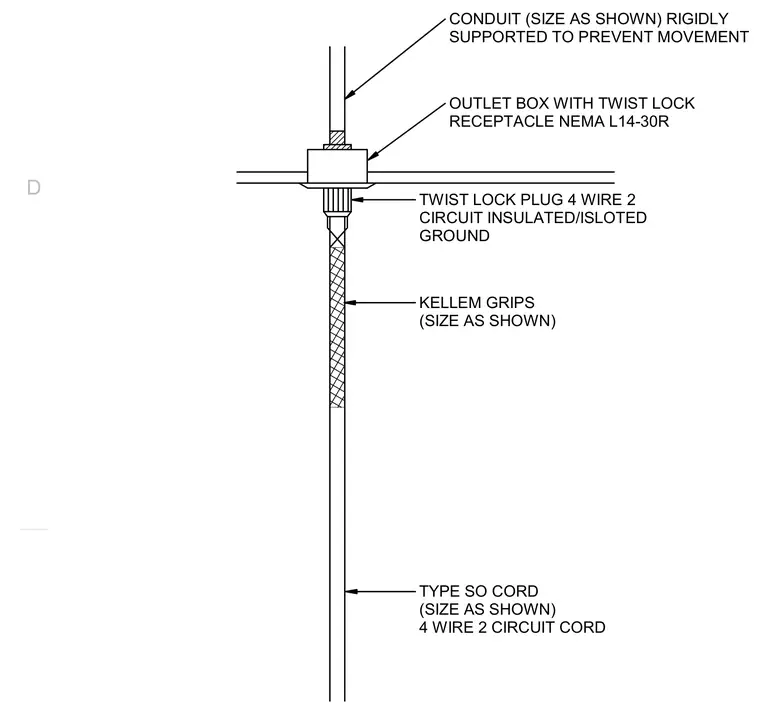

Rigid conduit is rigidly supported to prevent movement and connects to an outlet box equipped with a NEMA L14-30R twist lock receptacle. A four-wire, two-circuit insulated and isolated ground twist lock plug connects into the receptacle. A Kellem grip of the appropriate size provides strain relief for the Type SO cord hanging below.
CONDUIT (SIZE AS SHOWN) RIGIDLY SUPPORTED TO PREVENT MOVEMENT OUTLET BOX WITH TWIST LOCK RECEPTACLE NEMA L14-30R TWIST LOCK PLUG 4 WIRE 2 CIRCUIT INSULATED/ISLOTED GROUND KELLEM GRIPS (SIZE AS SHOWN) TYPE SO CORD (SIZE AS SHOWN) 4 WIRE 2 CIRCUIT CORD D
