Structural · E-32RGQ

Wide-Flange Beam to Column Stiffener Connection Plate Detail

Materials

Steel

Elements

Columns Beams Roofs Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

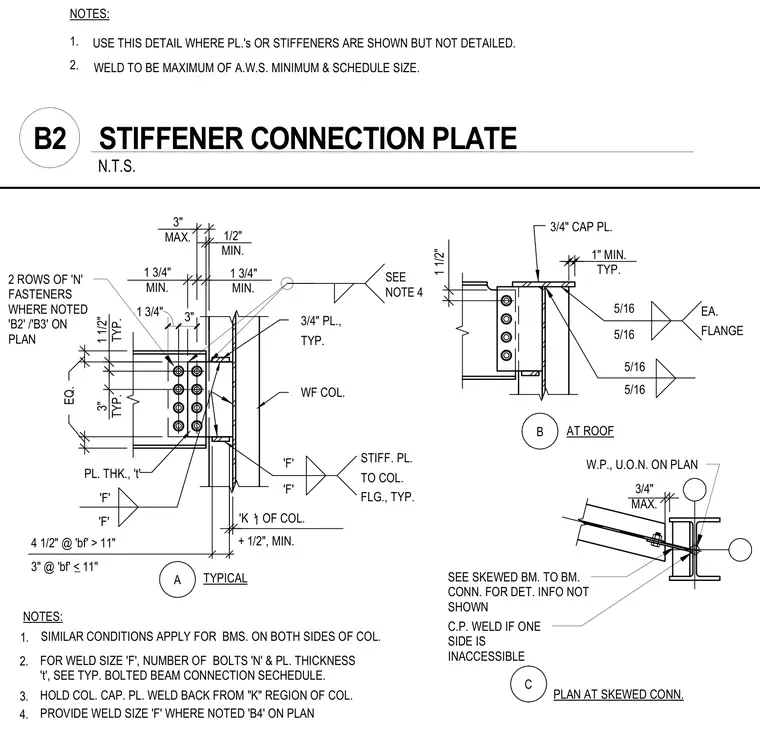

A wide-flange beam frames into a wide-flange column with stiffener plates welded to the column flange. The connection incorporates a three-quarter-inch cap plate at the top flange and two rows of fasteners as noted on the plan. Stiffener plates are welded to the column flange with five-sixteenth-inch fillet welds, keeping welds back from the k-region of the column by at least one-half inch. Additional plan views show conditions for skewed beam connections and roof applications with specific edge distances, hole spacings, and weld size schedules.
