Electrical · E-2XS8E

Typical Trapeze Conduit Rack

Materials

Elements

About this detail

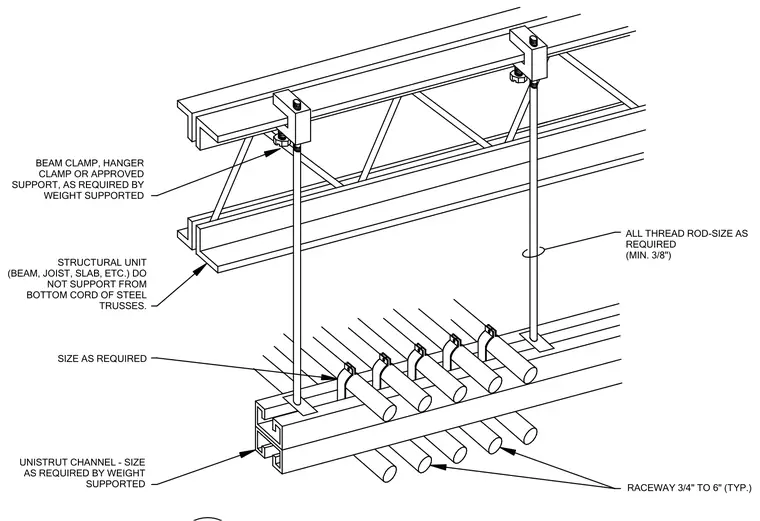

This assembly details a typical trapeze conduit rack suspended from structural units such as beams, joists, or slabs using beam clamps, hanger clamps, or approved supports sized to the supported weight. All-thread rods with a minimum diameter of three-eighths inches suspend a Unistrut channel sized according to the weight of the raceways. Individual raceways ranging from three-quarters of an inch to six inches are secured to the Unistrut channel with sizing as required. The structural attachment explicitly prohibits supporting the trapeze from the bottom chord of steel trusses.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
