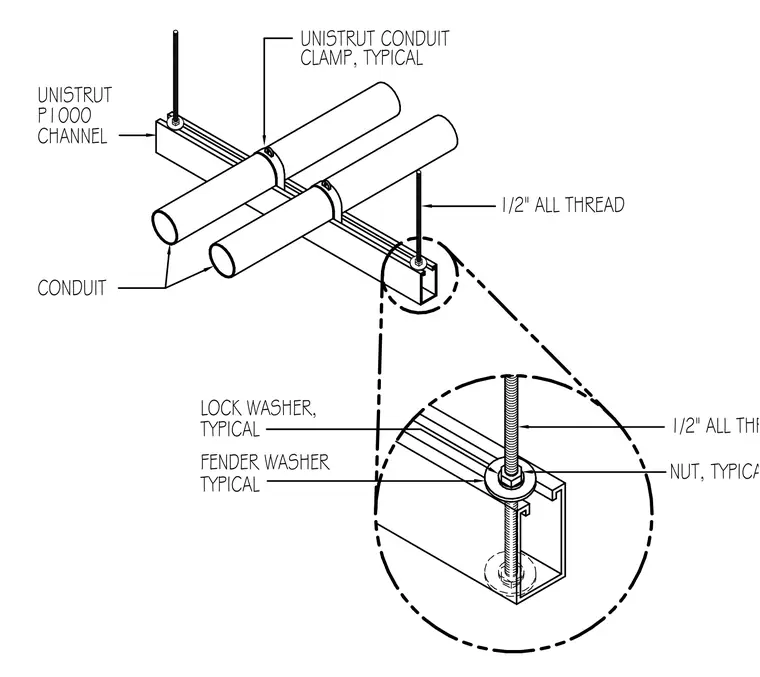

This assembly supports multiple conduits using a Unistrut P1000 channel suspended by one-half inch all-thread rods. The conduits are secured to the channel using Unistrut conduit clamps. The threaded rod is anchored through the channel using a nut, a lock washer, and a fender washer to distribute the load across the channel slot. This configuration provides a typical trapeze support system for overhead electrical conduit runs.
