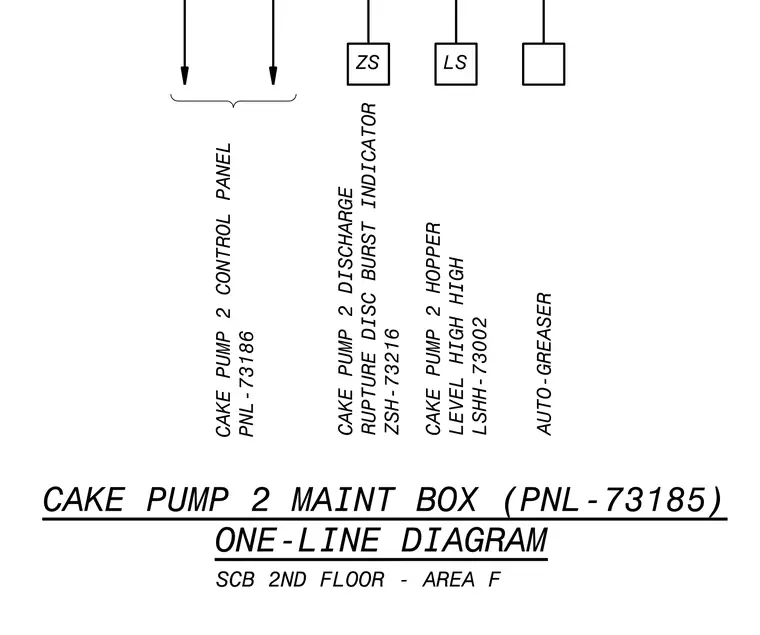

Electrical one-line diagram for the Cake Pump 2 maintenance box panel PNL-73185 located at the SCB 2nd floor area F. The diagram includes the Cake Pump 2 control panel PNL-73186, cake pump 2 discharge rupture disc burst indicator ZSH-73216, cake pump 2 hopper level high high LSHH-73002, and auto-greaser system.
CAKE PUMP 2 MAINT BOX (PNL-73185) ONE-LINE DIAGRAM SCB 2ND FLOOR - AREA F AUTO-GREASER CAKE PUMP 2 HOPPER LEVEL HIGH HIGH LSHH-73002 co r~ CAKE PUMP 2 DISCHARGE RUPTURE DISC BURST INDICATOR ZSH-73216 co N CAKE PUMP 2 CONTROL PANEL PNL-73186
