E-2VD33 — Motor Operated Valve Electrical Schematic

Electrical · E-2VD33

Motor Operated Valve Electrical Schematic

About this detail

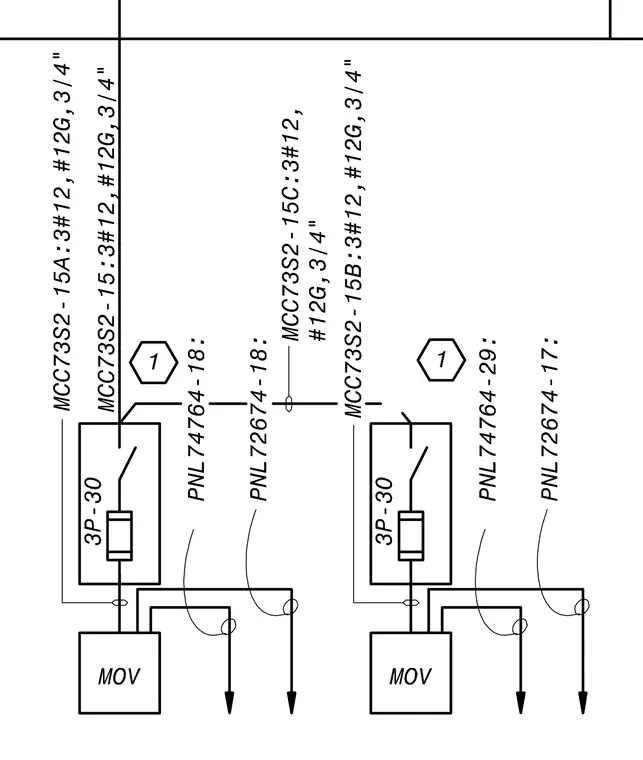

Motor operated valves connect to fused disconnects rated at 3P-30, fed from motor control center circuits containing three number 12 conductors with a ground wire in a three-quarter inch conduit. Additional control and instrumentation conduits route to panels PNL72674 and PNL74764.

PNL72674-17: PNL74764-29: O oe-de o I ” --------- MCC73S2-15C:3#12, #12G,3/4 " MCC73S2-15B:3#12,#12G,3!4" PNL72674-18: PNL74764-18: T0 O MCC73S2-15A:3#12,#12G,314" MCC73S2-15:3#12,#12G,3/4" 3P-30

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
