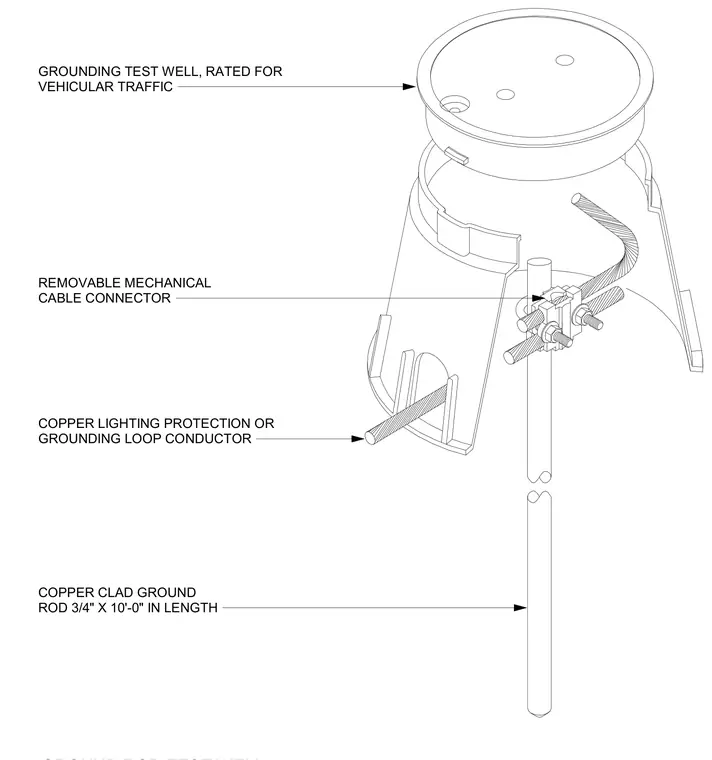

A copper-clad ground rod measuring three-quarters of an inch by ten feet in length drives vertically into the earth. A copper lighting protection or grounding loop conductor intersects the rod and secures with a removable mechanical cable connector. A protective grounding test well rated for vehicular traffic houses the connection.
GROUNDING TEST WELL, RATED FOR VEHICULAR TRAFFIC REMOVABLE MECHANICAL CABLE CONNECTOR COPPER LIGHTING PROTECTION OR GROUNDING LOOP CONDUCTOR COPPER CLAD GROUND ROD 3/4" X 10'-0" IN LENGTH
