Suspended equipment is restrained using a four-way splayed transverse and longitudinal rigid bracing assembly tied to overhead structures. A channel trapeze support consisting of single 1 5/8 inch by 1 5/8 inch by 12 gauge channels cradles the equipment from above and below, fastened with number 10 sheet metal screws spaced at a maximum of 12 inches on center. Threaded rods suspend the trapeze assembly while incorporating stiffening requirements for vertical load support. Splayed rigid brace channels extend outward from the equipment corners at a maximum angle of 45 degrees, with a tolerance of plus or minus 3.75 degrees, providing lateral seismic resistance.

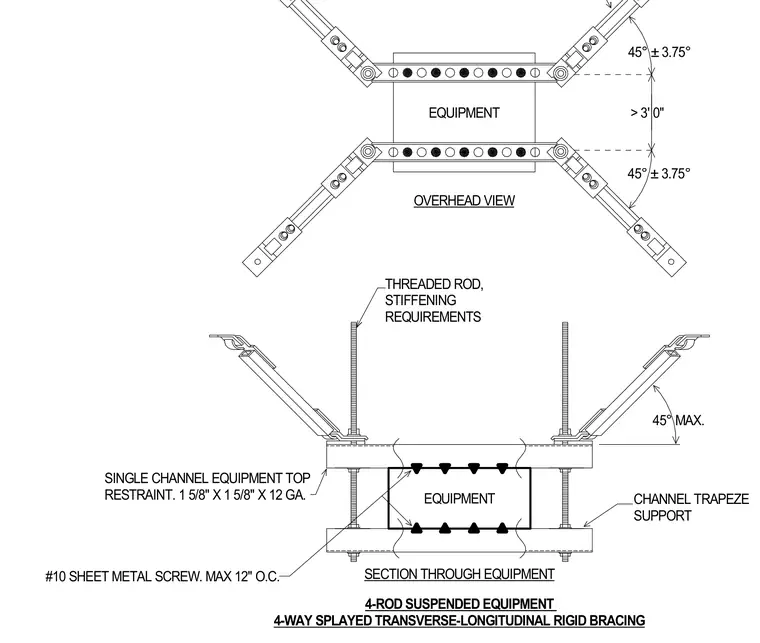

CHANNEL TRAPEZE SUPPORT SINGLE CHANNEL EQUIPMENT TOP RESTRAINT. 1 5/8" X 1 5/8" X 12 GA. SECTION THROUGH EQUIPMENT THREADED ROD, STIFFENING REQUIREMENTS OVERHEAD VIEW 45° ± 3.75° 4-ROD SUSPENDED EQUIPMENT 4-WAY SPLAYED TRANSVERSE-LONGITUDINAL RIGID BRACING EQUIPMENT 45° ± 3.75° > 3' 0" EQUIPMENT #10 SHEET METAL SCREW. MAX 12" O.C. 45° MAX.
